Radar sensors for industrial and process metrology, as addressed in the project “Glass Interposer Technology for Implementing Highly Compact Electronic Systems for High-frequency Applications” (GlaRA) sponsored by the BMBF (Bundesministerium für Bildung und Forschung, German Federal Ministry of Education and Research), are a good example of the needs profile described above. Standard packages do not work because of the frequencies exceeding 100 GHz – higher than those of mobile communications technology – and the stricter environmental requirements. They must allow for adaptation to specialized sensor ASICs and permit manufacturing in medium-sized quantities at competitive prices.

To this end, the consortium has developed and characterized a reliable interposer technology as a system-in-package (SiP) based on glass for broadband millimeter wave modules that can be used in sensors and communication at frequencies above 100 GHz. The technology platform demonstrated here constitutes a sensor packaging revolution: Compared to the state of the art, it uses various waveguide concepts, high-density micro wiring, and hermetic encapsulation to increase functions able to be integrated. In addition, it makes applications up to 300 GHz possible thanks to high precision and material qualities. This is implemented within a single material system (glass) through excellent waveguide properties and high-precision micromachining, among others.

The use of glass interposers with electric feedthroughs (vias) provides hermetic packaging able to enclose the components between two glass interposers. The packages are manufactured at wafer level with a diameter of up to 300 mm. This allows for moderate costs thanks to the simultaneous processing of many components and alignment accuracy within the narrow tolerances of RF technology. Adapted standard systems originally used for machining silicon wafers are employed for this, greatly accelerating commercial implementation. Glass is also available in large panels, considerably simplifying scaling to large quantities.

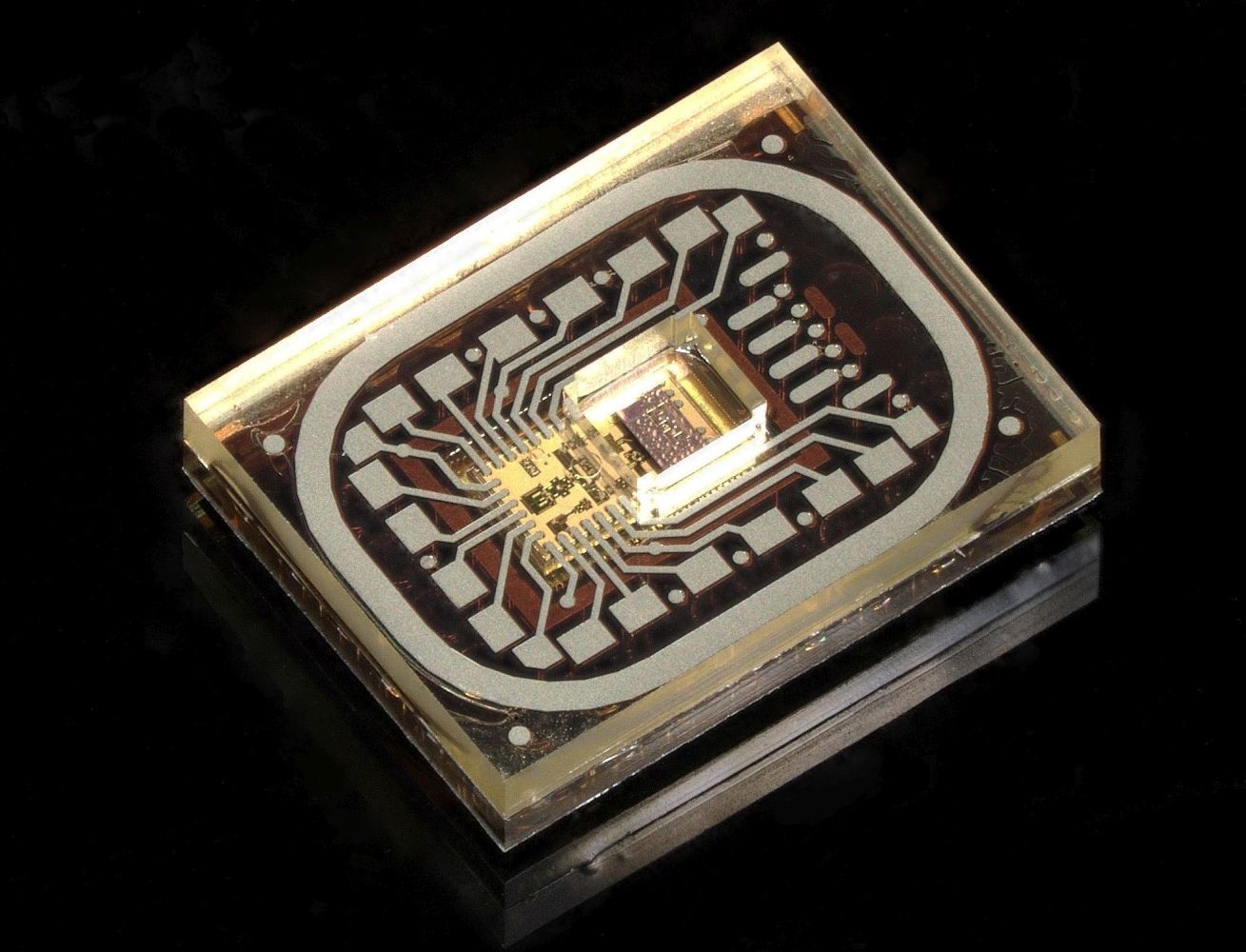

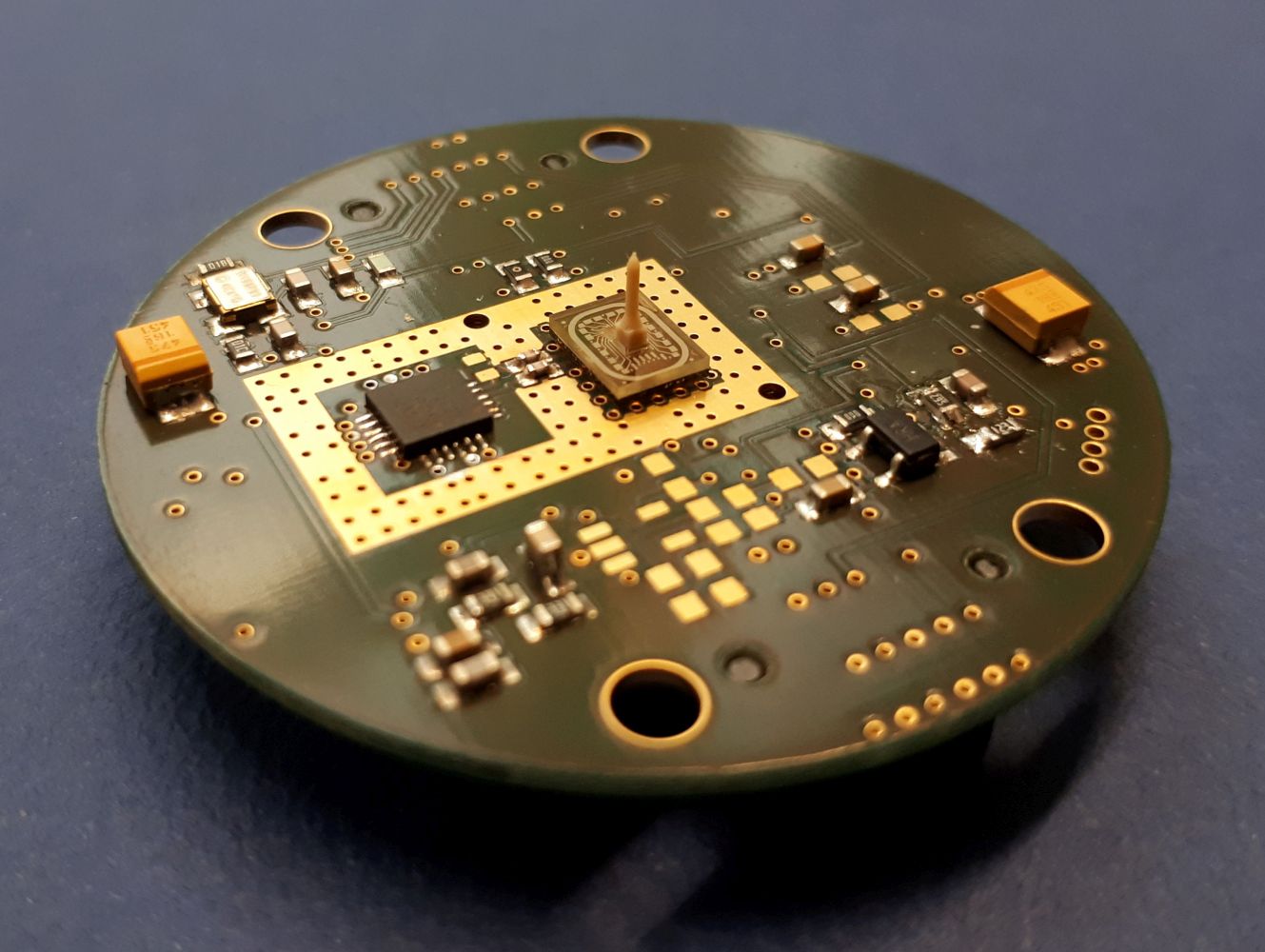

The results represent exceptionally great success for an R&D project sponsored by the BMBF. The consortium demonstrates this with an extremely compact radar front end developed at Endress+Hauser AG for future radar fill level sensors, with an operating frequency of 160 GHz. The glass package is tiny (5.9 x 4.4 x 0.8 mm³) and contains a radar ASIC in SiGe technology, all electrical connections to external electronics, test structures for characterization, and a waveguide connection that can also be used as an integrated primary emitter for a lens antenna. Such future fill level sensors feature high distance resolution, measuring accuracy, and beam focusing at very compact dimensions. Therefore, they are of great interest for the constantly shrinking and increasingly more modular systems of smart process metrology.

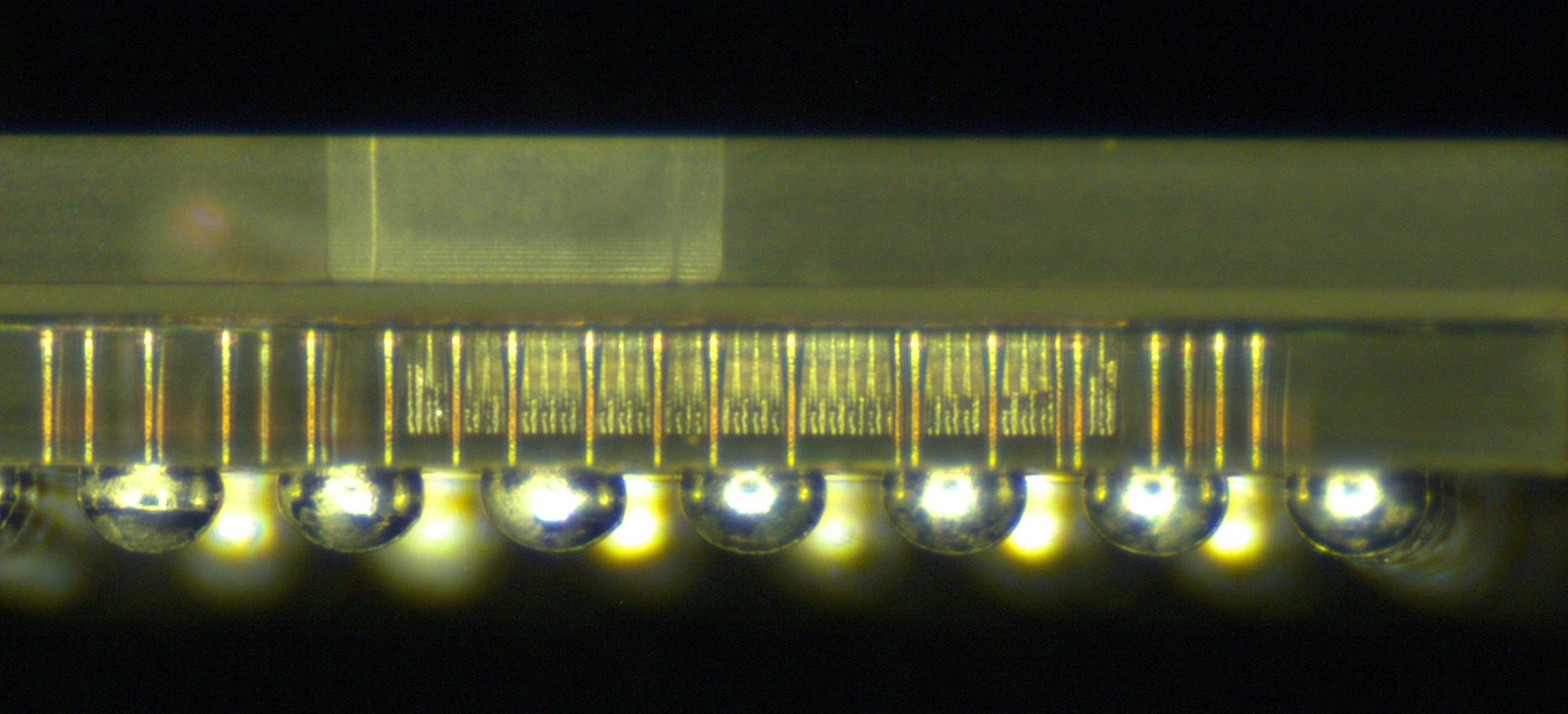

The demos were produced using a new kind of process chain, starting with the revolutionary laser-induced deep etching (LIDE) of LPKF Laser & Electronics AG. The process of generating microstructures in glass prevents damage to the material, which is mandatory for a manageable and hermetic glass package. The Fraunhofer Institute for Reliability and Micro-Integration has implemented a process fit for industrial use for metallizing the glass vias with high aspect ratios. A wafer bonding process is used to hermetically package the assembled components by bonding two glass wafers, each of which have vias and cavities.

The conducting paths on the glass substrates are structured and metallized at PacTech GmbH. Using PacTech’s SB² process, a laser-supported process for the sequential build-up of solder balls, solder deposits are placed on contact surfaces produced without         external current. Different alloys are used to enable staggered assembly at different soldering temperatures. MSG Lithoglas GmbH assists with the implementation of the HF packages by producing cavities used to hold the ASIC and other components. In addition, high-precision spacers made of glass are produced by means of low-temperature coating.

With a high-frequency concept developed for the new package by the Institute for Microwave Technology of Ulm University, the radar signal – at more than 100 GHz – can both illuminate a lens directly via a primary beam and be guided at low loss to a detached antenna via a flexible dielectric waveguide. The different options for emitting radar signals from the package enable a great variety of applications. Sentronics Metrology GmbH has developed a 3D high-speed sensor with layer resolutions in the sub-nanometer range for quality control. Among other uses, the sensor has been qualified for detecting leaks in the encapsulated, evacuated glass packages.

The industry partners are very interested in the future commercial availability of the technology, as they see potential for many other areas of application, such as pressure measurement technology, liquid analysis, photonics, MEMS, medical technology, and communication technology beyond 5G.

The “GlaRA” funding project is being sponsored by the BMBF from August 2017 to March 2021 under reference no. 16ES0687K as part of the TechSys call.
