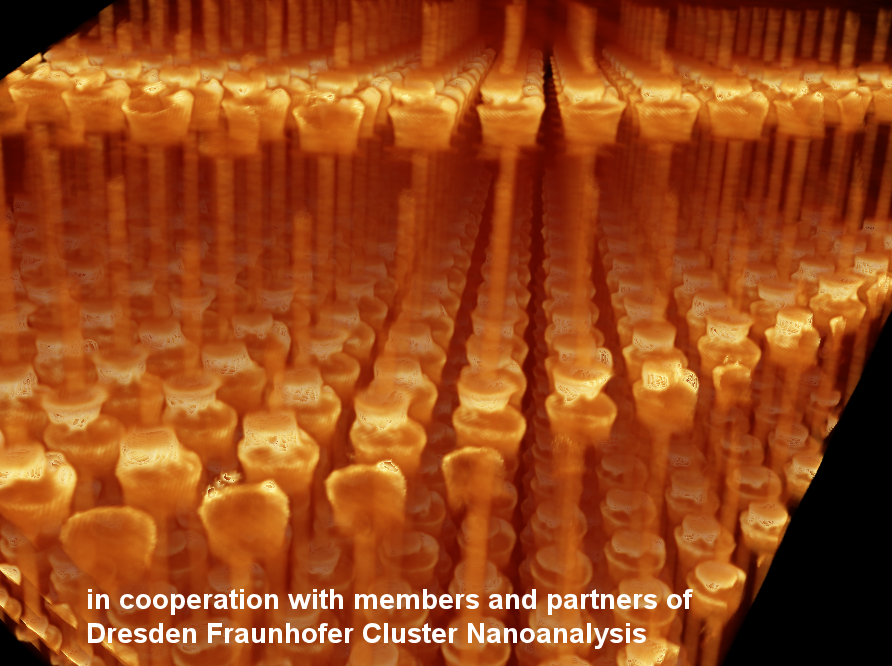

Sub-Micron X-ray Tomography for 3D TSV Stacking (in cooperations with members and partners of "Dresden Fraunhofer Cluster Nanoanalysis")

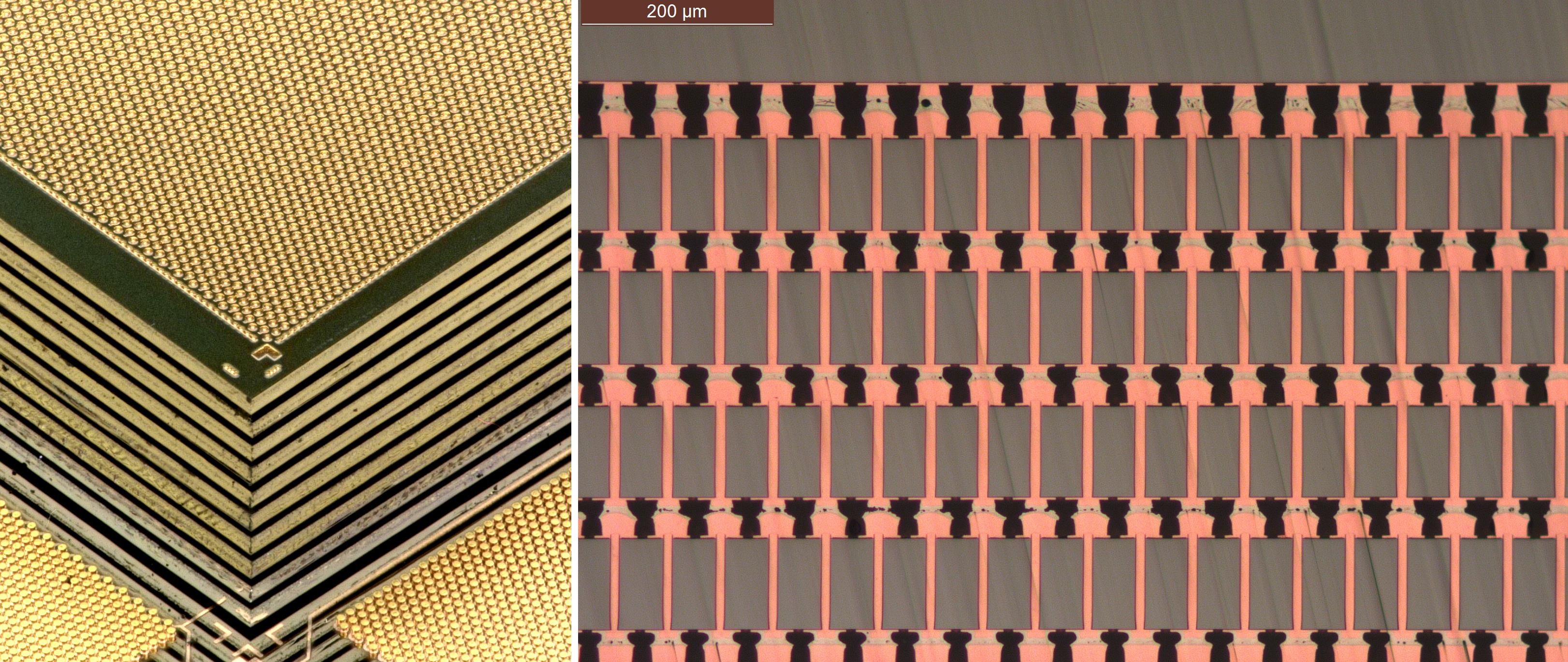

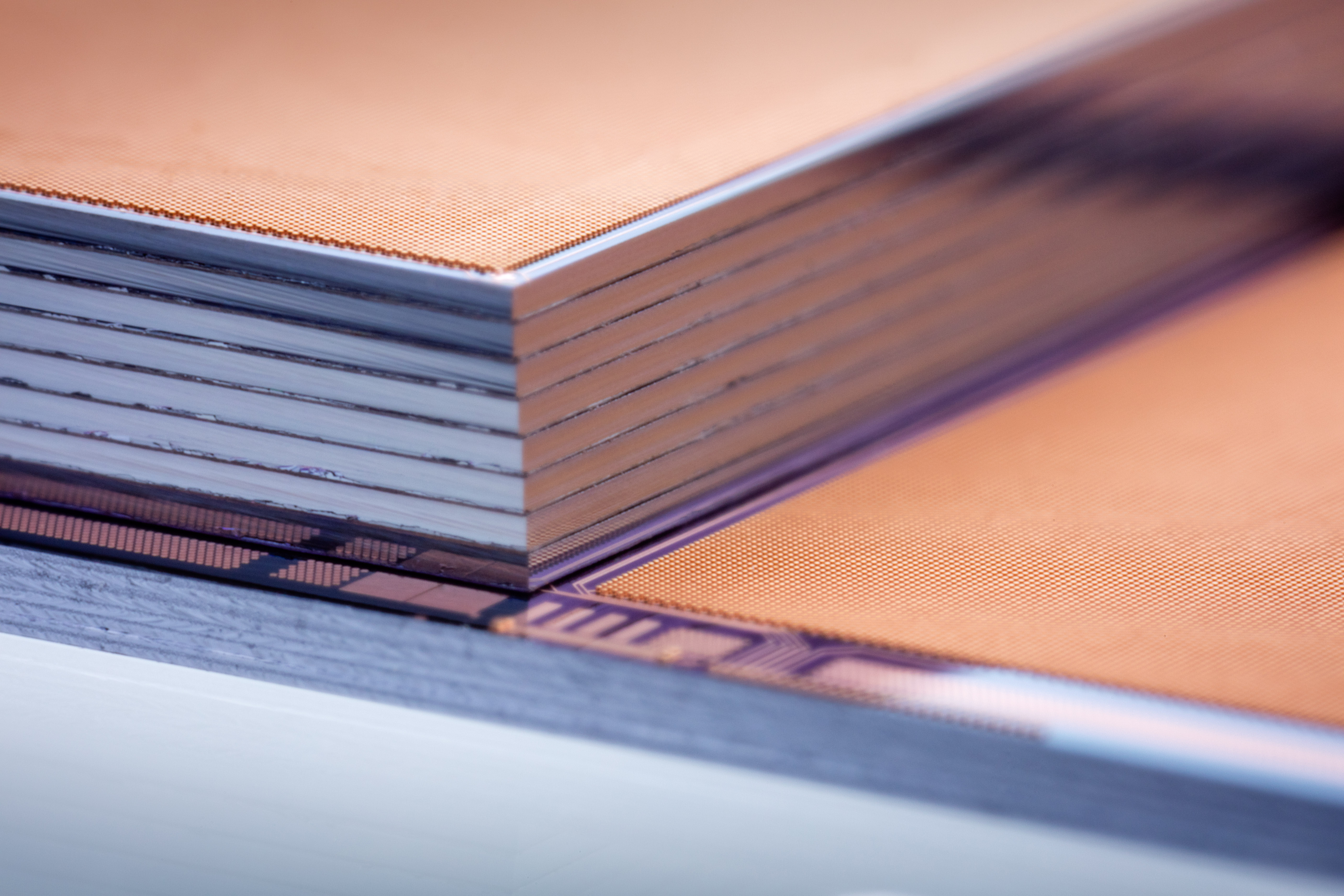

3D Flip Chip stack of 1+9 TSV test devices (thickness: 100 µm)
SnAg interconnect structures
Minimum interconnect pitch spacing: 55 µm
Minimum distance between two stacked chips: 30 µm
placement accuracy: 3µm@3Sigma for a maximum chip size of 20 x 20 mm²
Used underfill technologies: capillary- as well as pre-applied-underfill
